Product variation swatches
Follow these steps to create Product Variation Swatches.

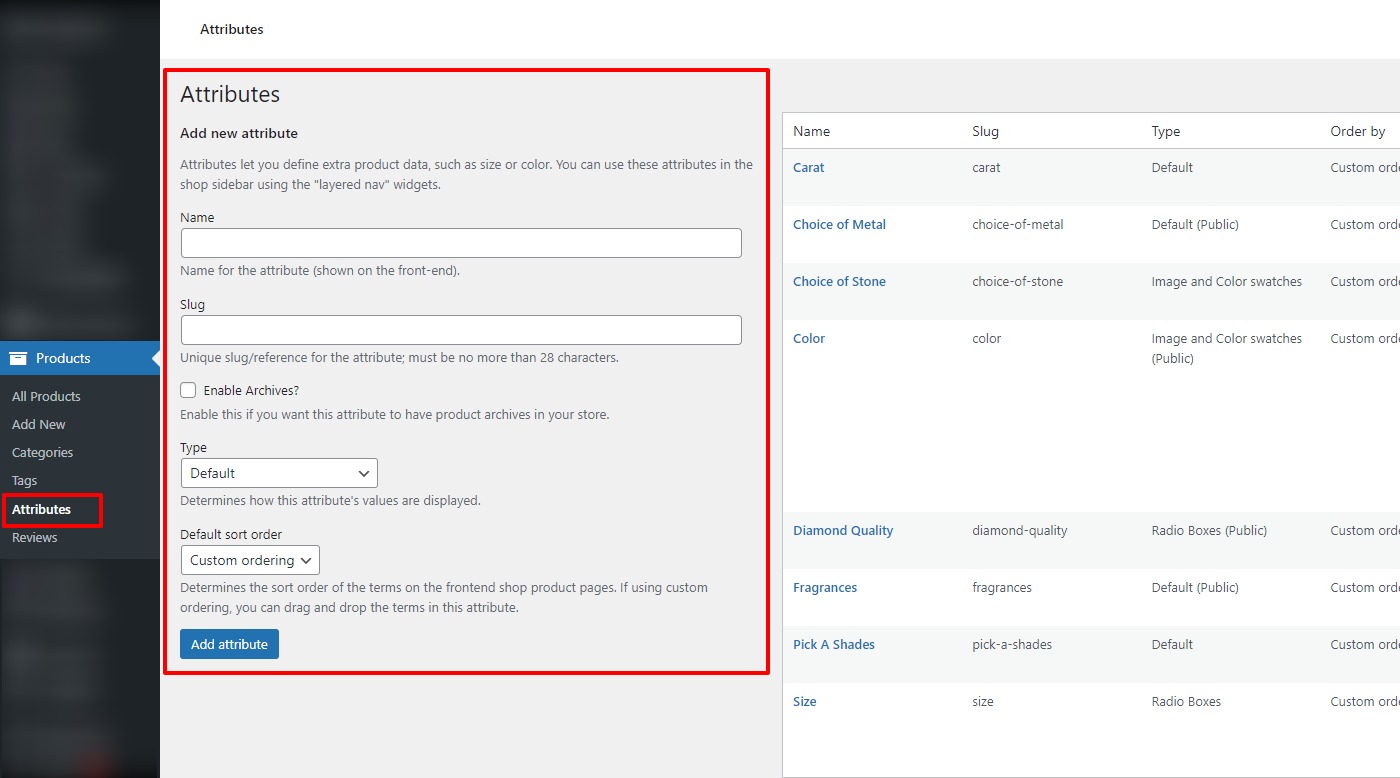

- Step 1: From the Dashboard, navigate to Products > Attributes
- Step 2: Fill in the Attribute name (such as Size, Color, Image, etc)
For example, you want to add color attribute to the product then fill in “Color” in “Name” field.

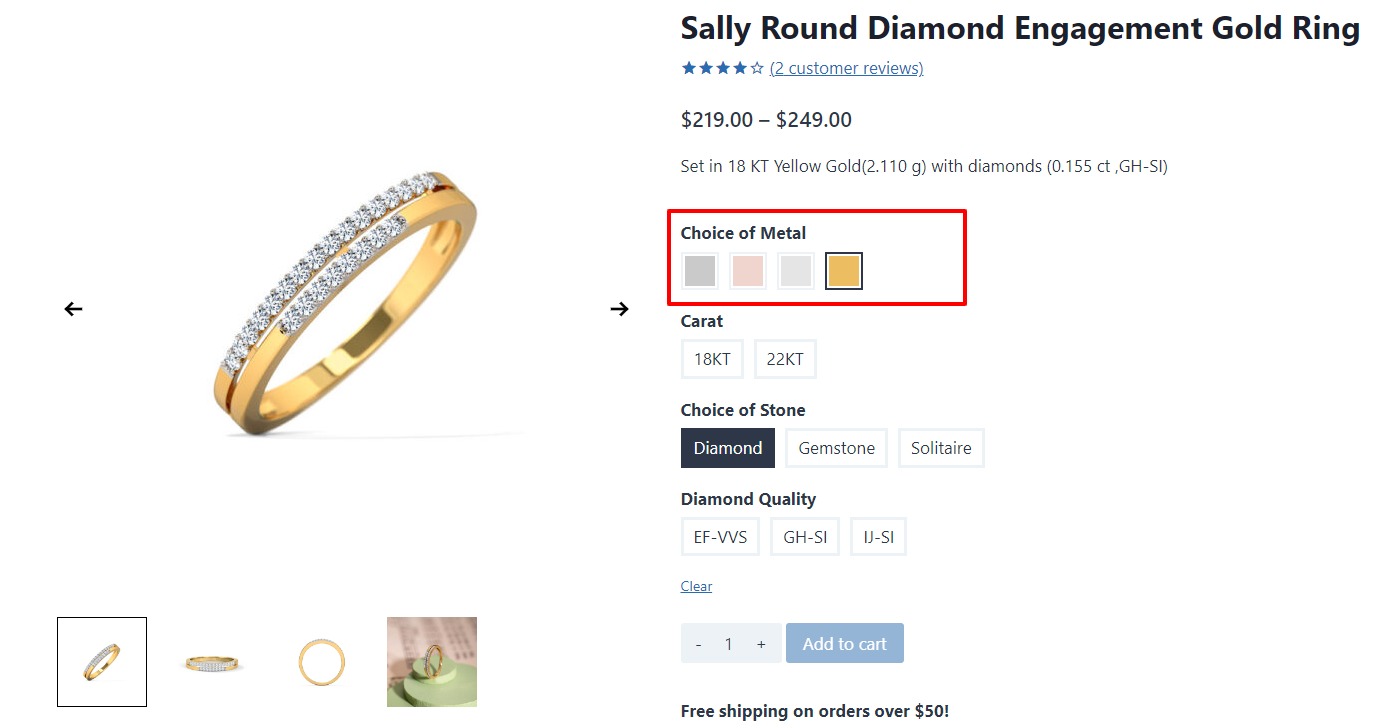

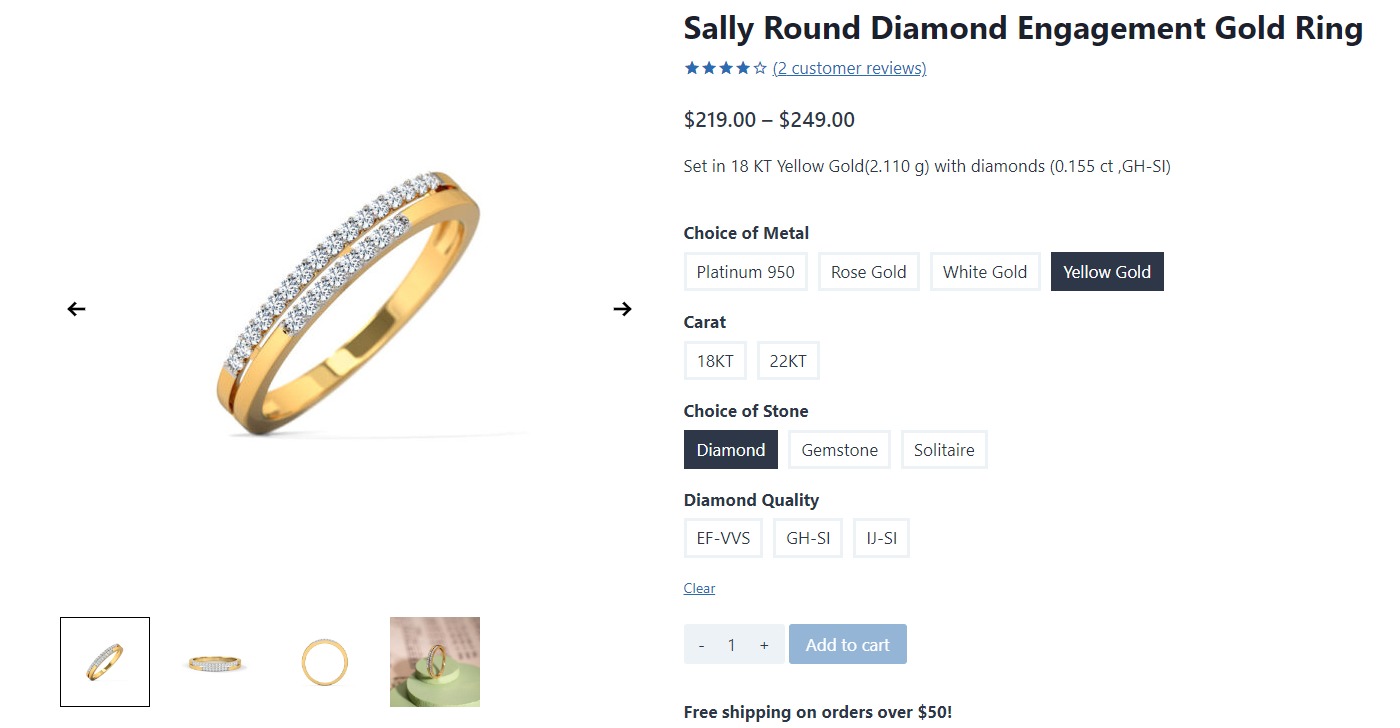

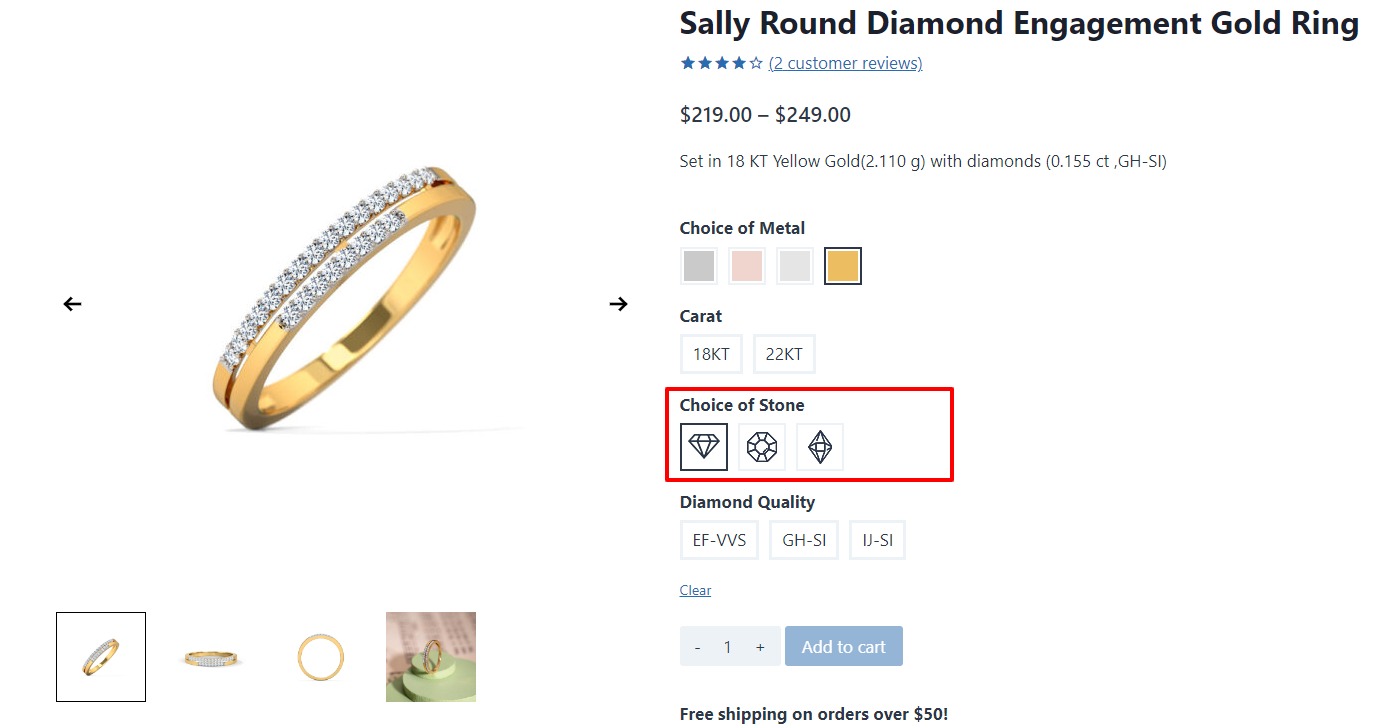

Step 3: You can determines how this attribute’s values are displayed with Type.
You can display your attribute in 3 types:
- Text

- Color

- Image

Set up variation swatches for products
Step 1: From the admin dashboard, navigate to Products > All Products.
Note: If you haven’t created any product, Go to Product > Add New, then fill in all the need information.

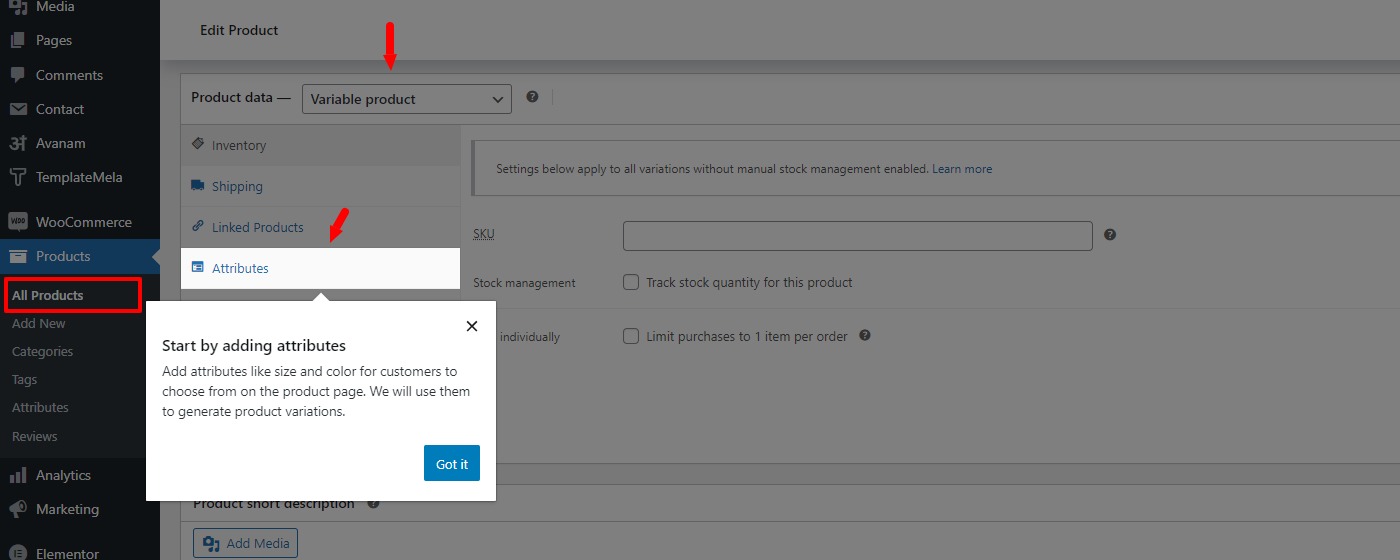

Step 2: Select the product you want to set Product variation swatches. At the Product data section, select Product type as Variable product.
Step 3: Choose tab Attributes > Add the attribute you’ve just created

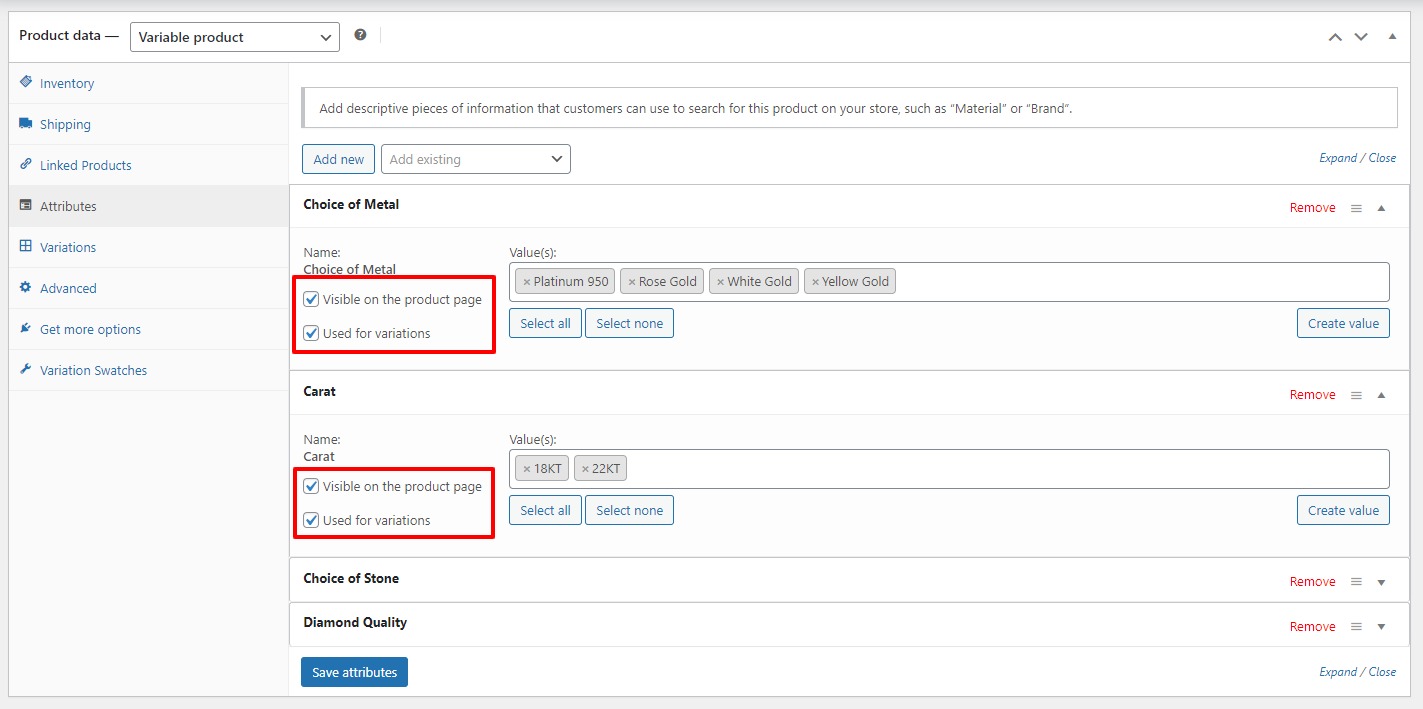

Step 4: Click on each attribute tab to fill in its value by typing in the value you want then hit Add new. Also, put a tick on 2 options that are Visible on the product page and Used for variations. And finally hit Save attributes.

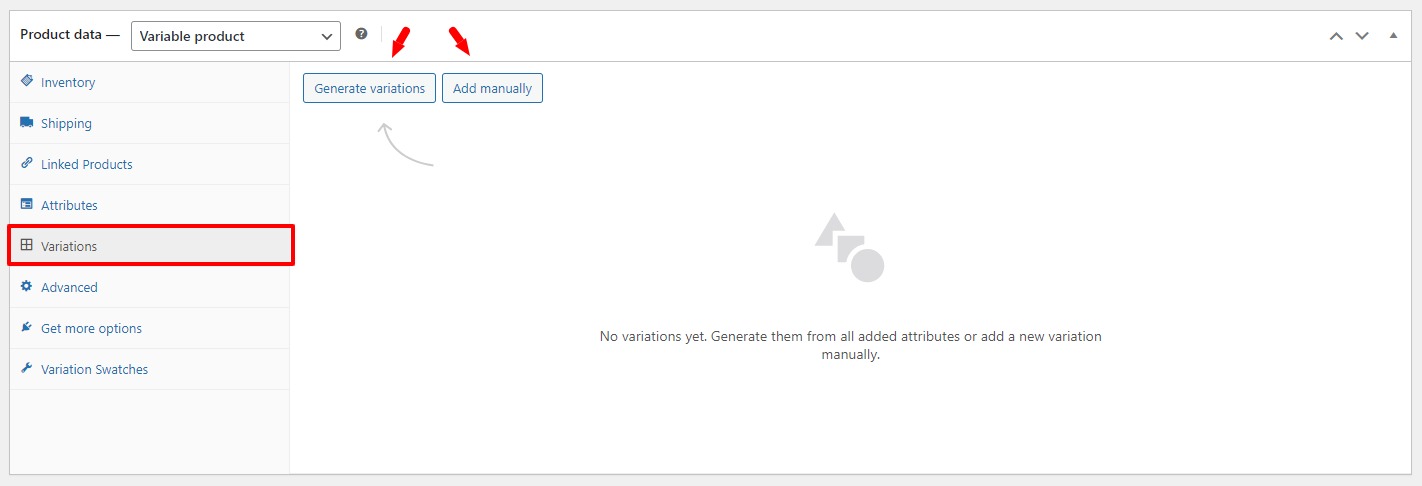

Step 5: Move to tab Variations, click the dropdown menu and choose Create variations from all attributes, click Go.

Step 6: Now you will see all the variations appear based on the product’s attributes. Firstly, select the default variation if you want. Next, select the attribute that you want to show on shop catalog.

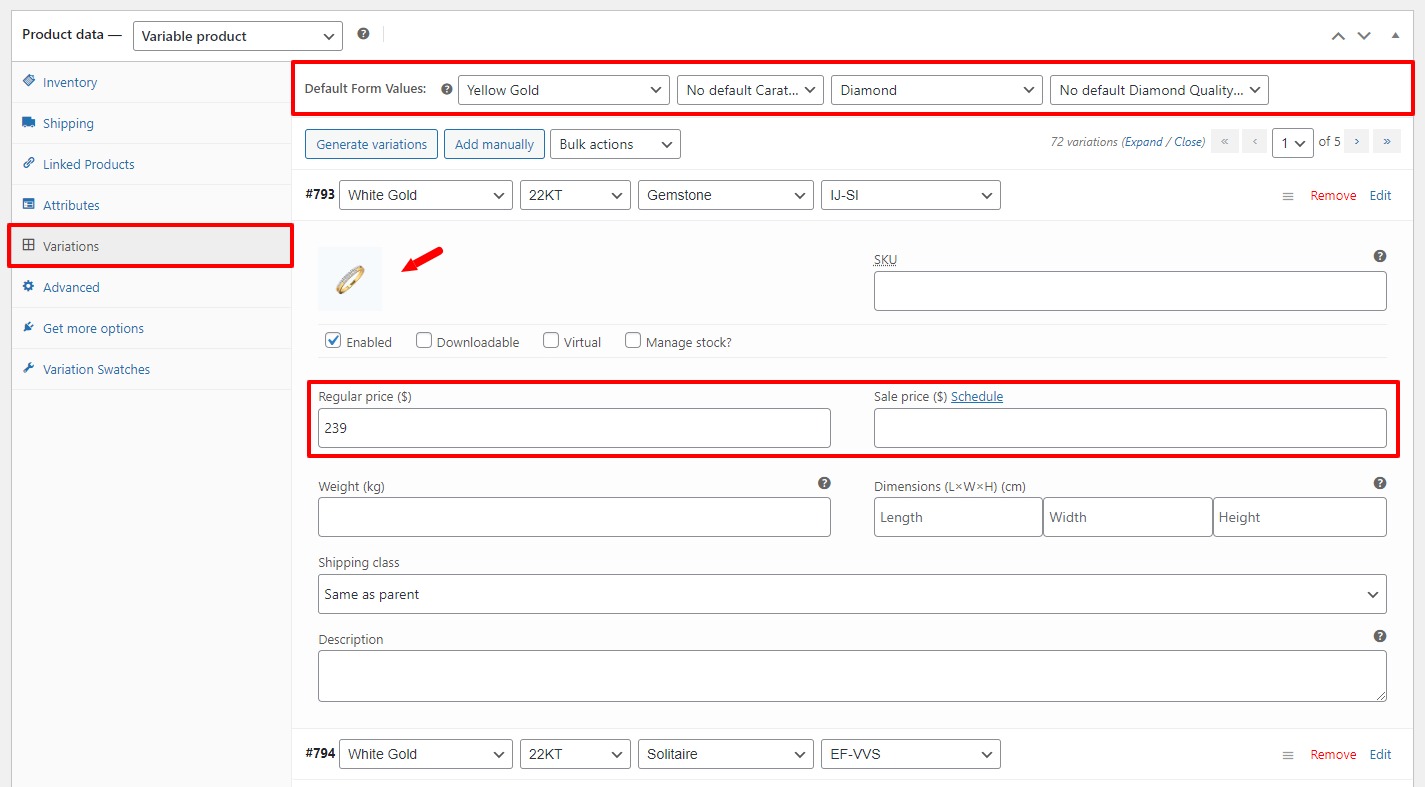

Step 7: Click on each variation to set up its image, price, sale countdown, and other details as you want.

Step 8: Finally, click Save changes after you finished all of them. And click Update to save changes to the product.
